Prodigy EG Series – 16/32 Channel USB/RTU/TCP Modbus GPIO Module

SKU:

Description Block diagram FAQ Resources Sample Code Specifications

Prodigy EG Series – 16/32 Channel USB/RTU/TCP Modbus GPIO Module

SKU:

    Current configuration - Edit
  • pa_number-of-gpios: 16

$248.99

Features

  • 16/32 3.3V GPIOs
  • 8/14 Analog Inputs(Multiplexed with GPIO) of 12-Bit resolution
  • Compatible with most automation software in the market that supports Modbus RTU/TCP
  • Features such as GPIO Timer, the Watchdog timer for fail-safe operation, Configurable Power On states, etc..
  • Write your own script or software with the help of a large number of sample code provided in various languages

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

Configure your product

Select a custom configuration for your product. If you need an additional improvement or have any questions, please send us a message on the form below.

Number Of GPIOs (Max)

Prodigy EG Series – 16/32 Channel USB/RTU/TCP Modbus GPIO Module

SKU:

    Current configuration -
  • pa_number-of-gpios: 16
Price:

$248.99

Request For QuoteWanna Customize? Drop Us A Line!

Prodigy EG16/EG32 is a Digital Input/Output module that supports Modbus RTU over USB and RS485 and Modbus TCP over Ethernet. This product has 16/32 GPIO(3.3V) multiplexed with 8/14(Max) Analog Inputs that support it. The RS485/USB/Ethernet host interface makes connecting this device to any Windows, Linux, Mac machines, or embedded computers such as RPi an easy task. Meanwhile, support for industry-standard Modbus protocol makes it easy to use this device with almost any automation software that supports Modbus – RTU/TCP. EG16/EG32 when RTU model connected to a host computer, is enumerated as a regular serial port. This alleviates the difficulty of working with the USB protocol and offers a transparent interface to access the device. EG16/EG32 acts as a Modbus slave device at slave address 1. Flexible DIN Rail mounting system allows easy installation and removal with screws. EG16/EG32 supports several features such as GPIO Timer, Safety Timer (Watchdog), Programmable Power-On State, etc.

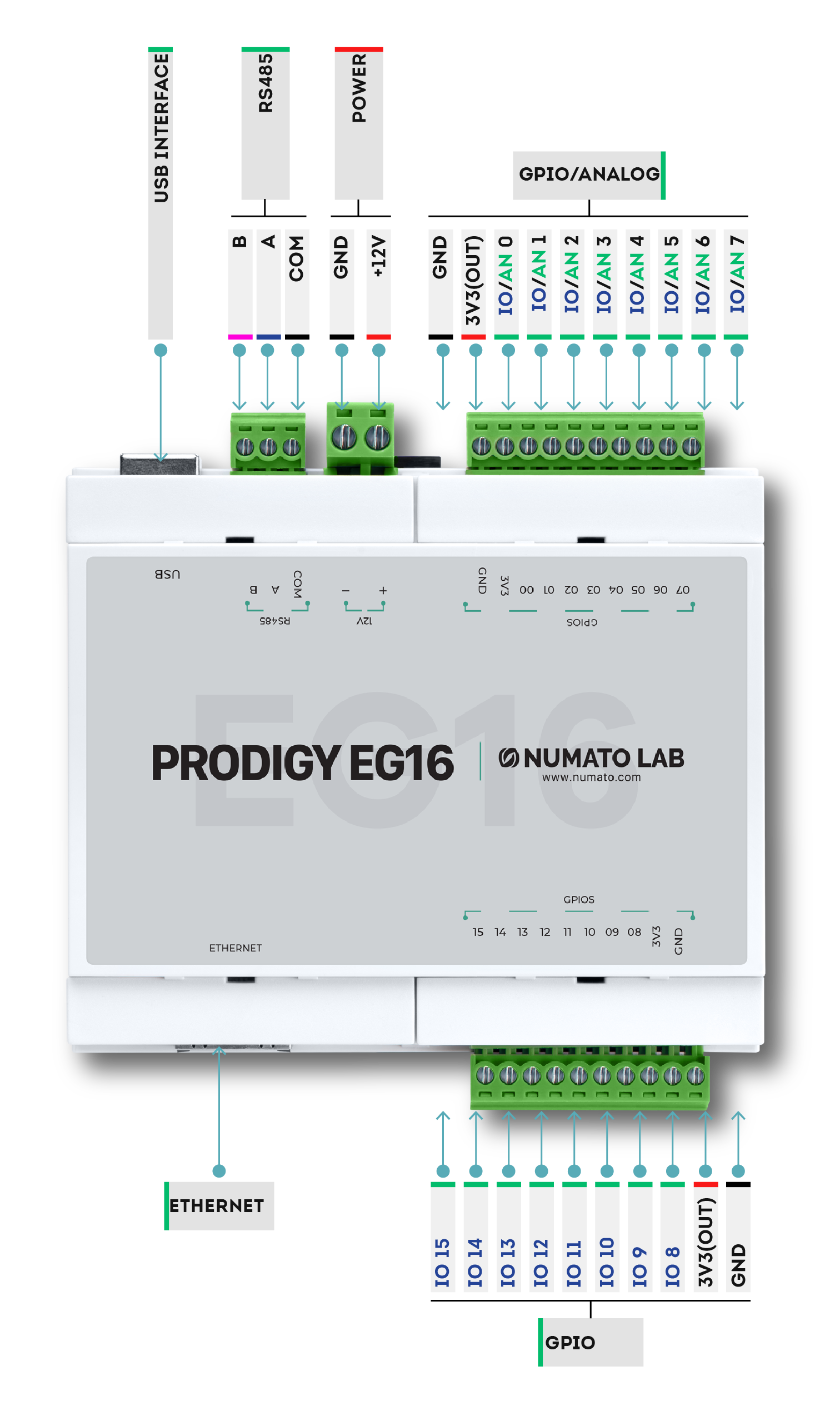

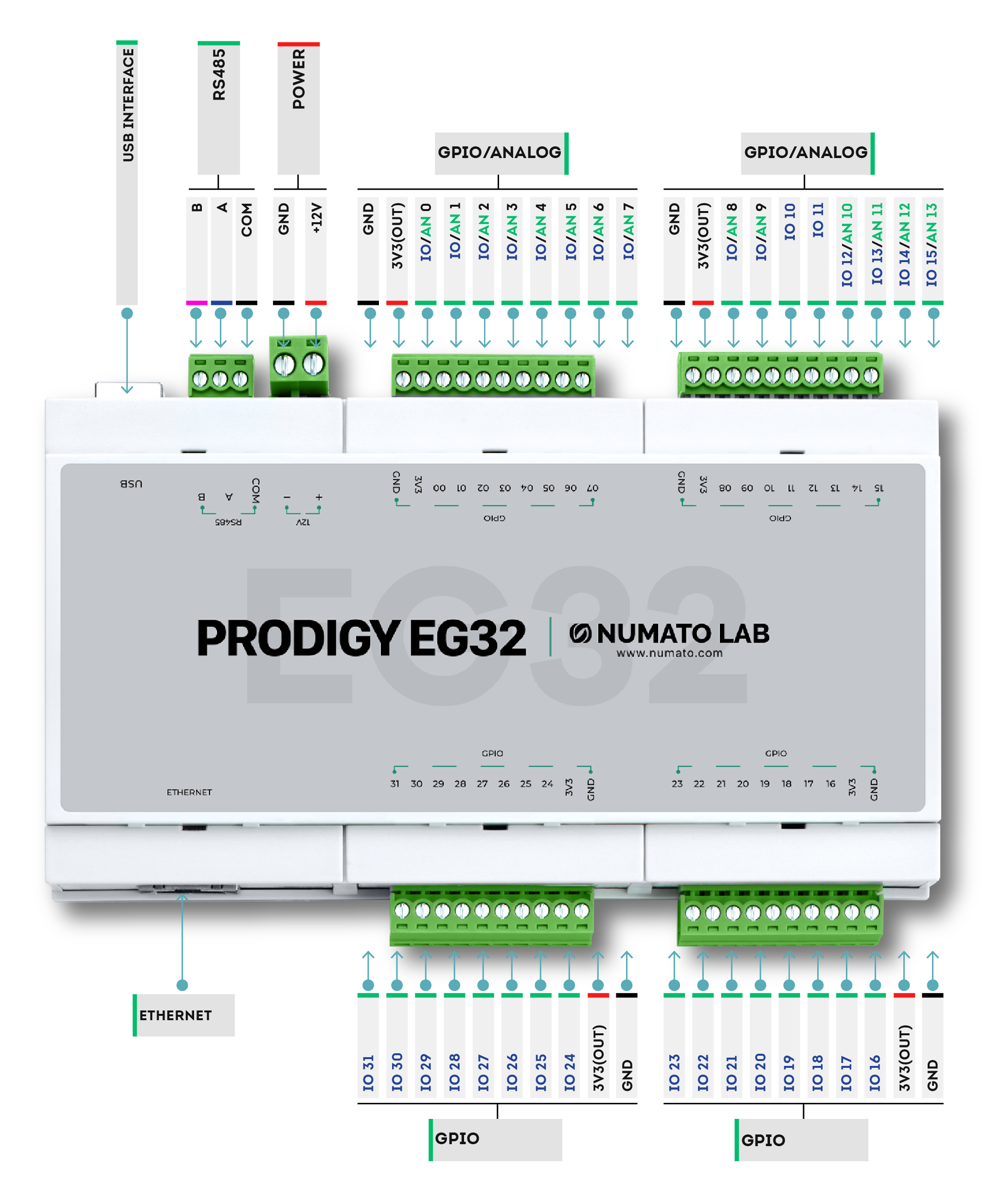

EG16 GPIO Diagram                                                           EG32 GPIO Diagram

General FAQs

Downloads

Downloads

User Manual
Driver for Prodigy
Device Discoverer
View/Download 3D Model (STEP)-EG32
View/Download 3D Model (STEP)-EG16
EG16 Physical Dimensions
EG32 Physical Dimensions

Specifications

Attribute Value
Weight 3 lbs
Dimensions 11 × 8 × 3 in
Number Of GPIOs (Max)

,

IO Voltage Max

Analog Inputs(Max)

Analog Input Resolution

Operating Temperature

-30°C to +85°C
Warranty

Host Interface

,

Package Contents

Sample Code

Sample Code

Language/TechnologyIDE/CompilerTypeOSDownload link
C#Visual Studio 2022GUIWindowsDownload - RTU
C#Visual Studio 2022GUIWindowsDownload - TCP
